Yamaha Low Profile Ceiling Speaker VXC5FW

Description

OVERVIEW

Low-profile ceiling speakers designed for superior music reproduction

Music can play an integral role in defining the aesthetic and atmosphere of a commercial space, greatly enhancing the overall experience for customers and clientele. By combining Yamaha’s unrivaled acumen for developing state of the art musical instruments and professional audio technologies, with a flexible approach towards design and application, VXC-F ceiling speakers allow you to streamline the installation process and seamlessly integrate high-quality audio into a restaurant, retail, or professional environment. Featuring a newly designed speaker unit, optimally tuned for music playback, the VXC-F’s shallow, lightweight construction and flexible design can easily adapt to the strictest installation limitations, ensuring superb audio performance wherever they’re placed.

Product Information

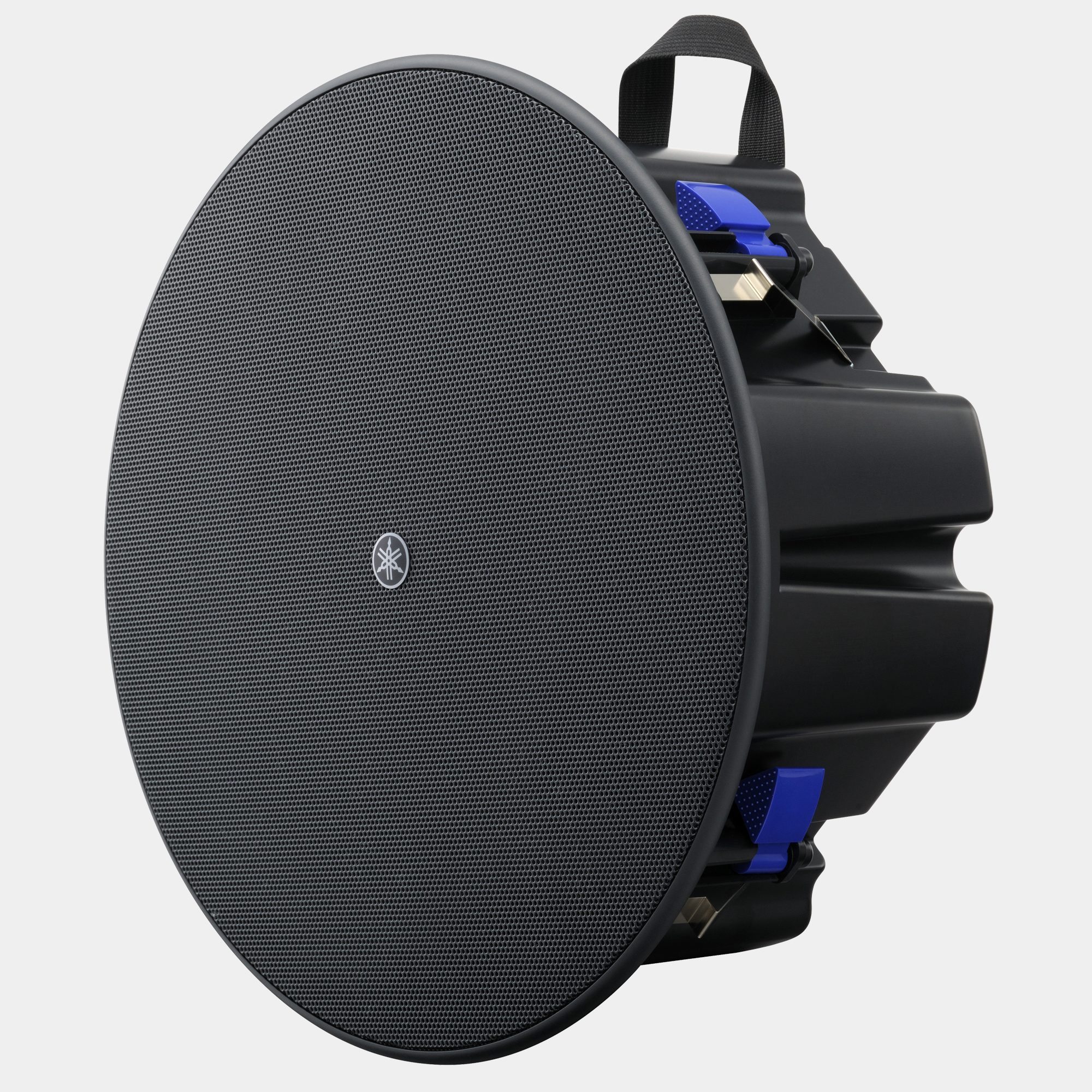

VXC5F / VXC5FW Ceiling speaker

4.5″ full-range low-profile ceiling speaker

• 5” full-range speaker unit
• Engineered for optimum BGM reproduction
• Low-profile design facilitates installation in limited ceiling spaces
• Direct support for low-impedance or high-impedance connections

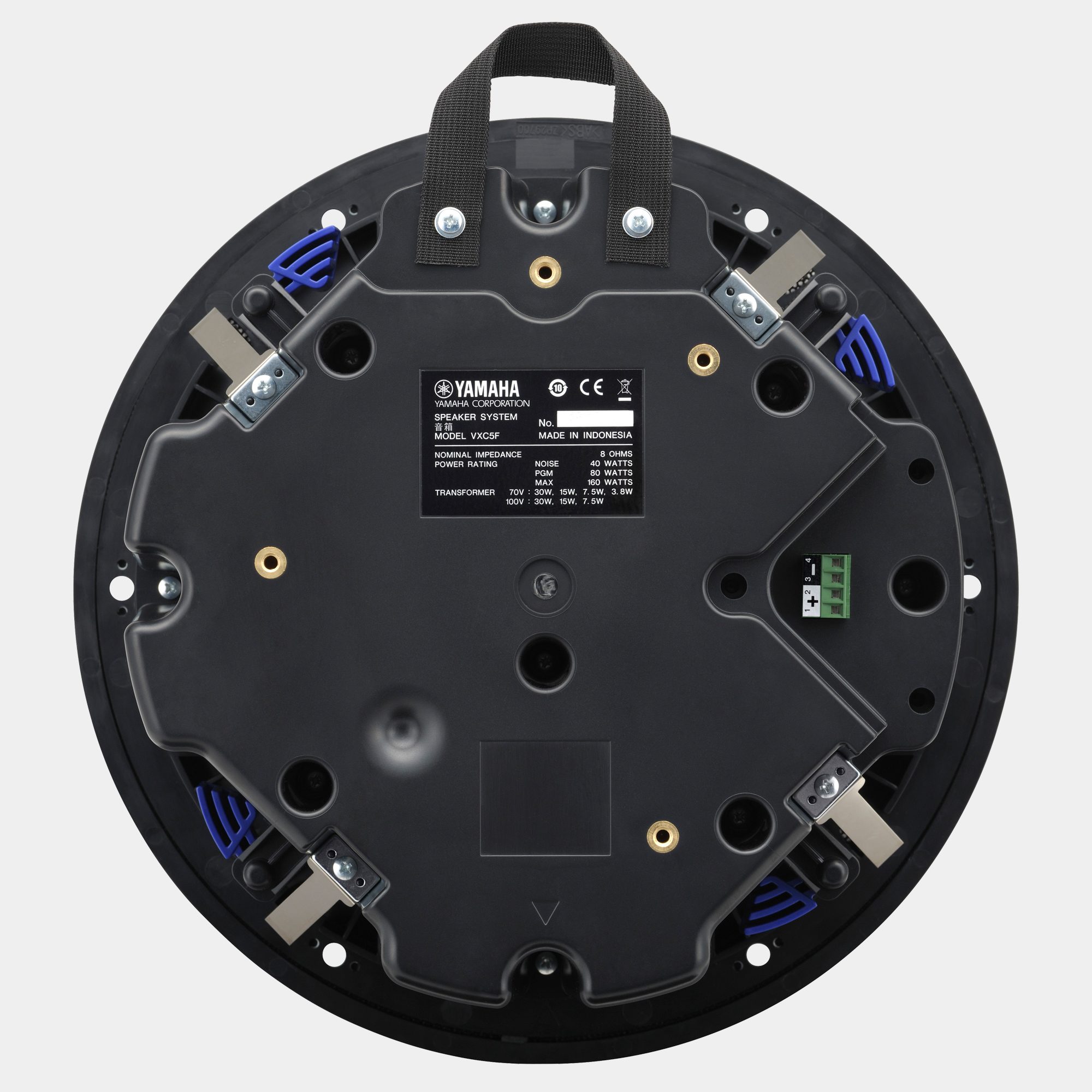

• Built-in carrying band increases safety during installation
• Anti-drop tab mechanism provide secure temporary positioning during installation
• Double-threaded speaker clamp screws for speedy tightening

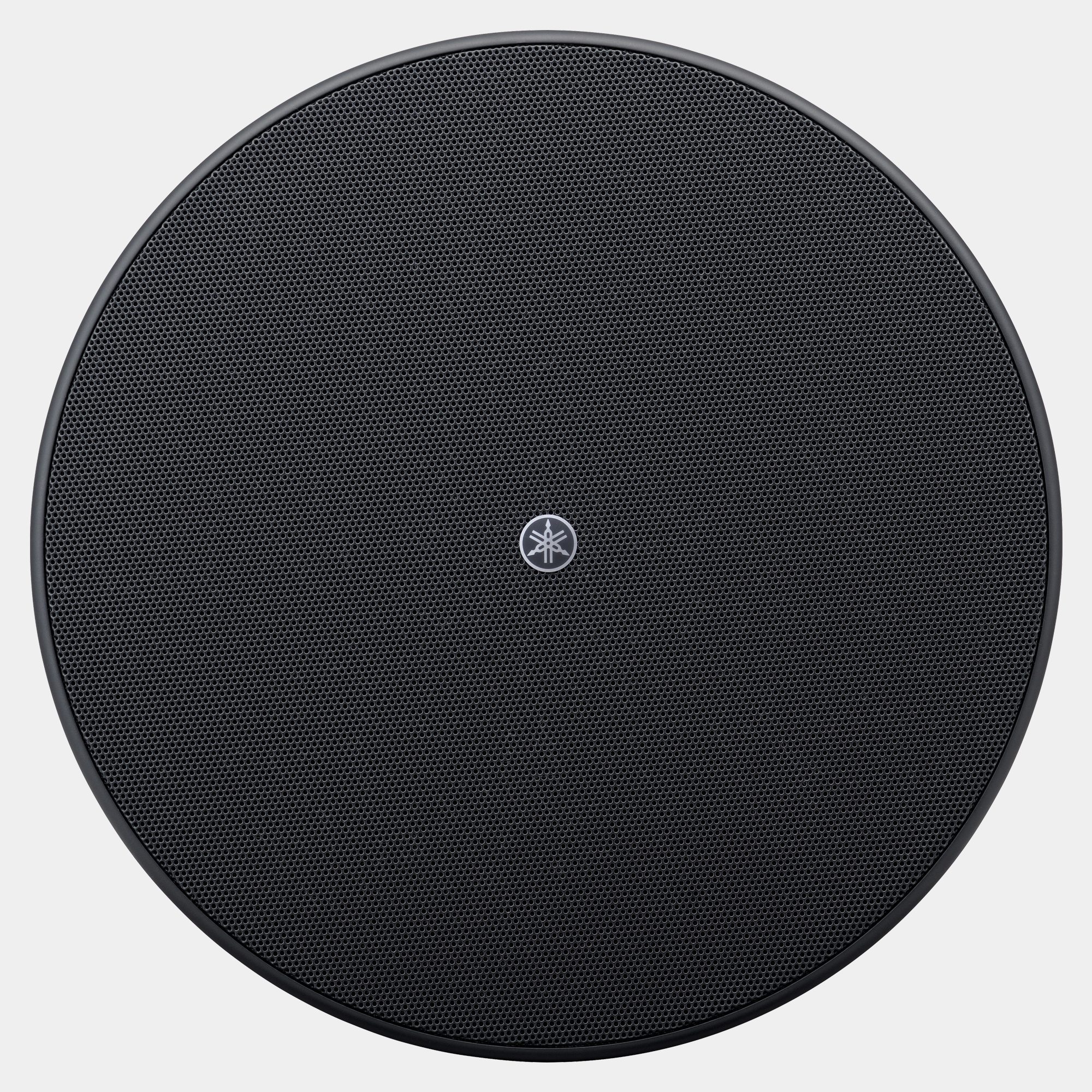

• Paintable grilles with magnetic catches

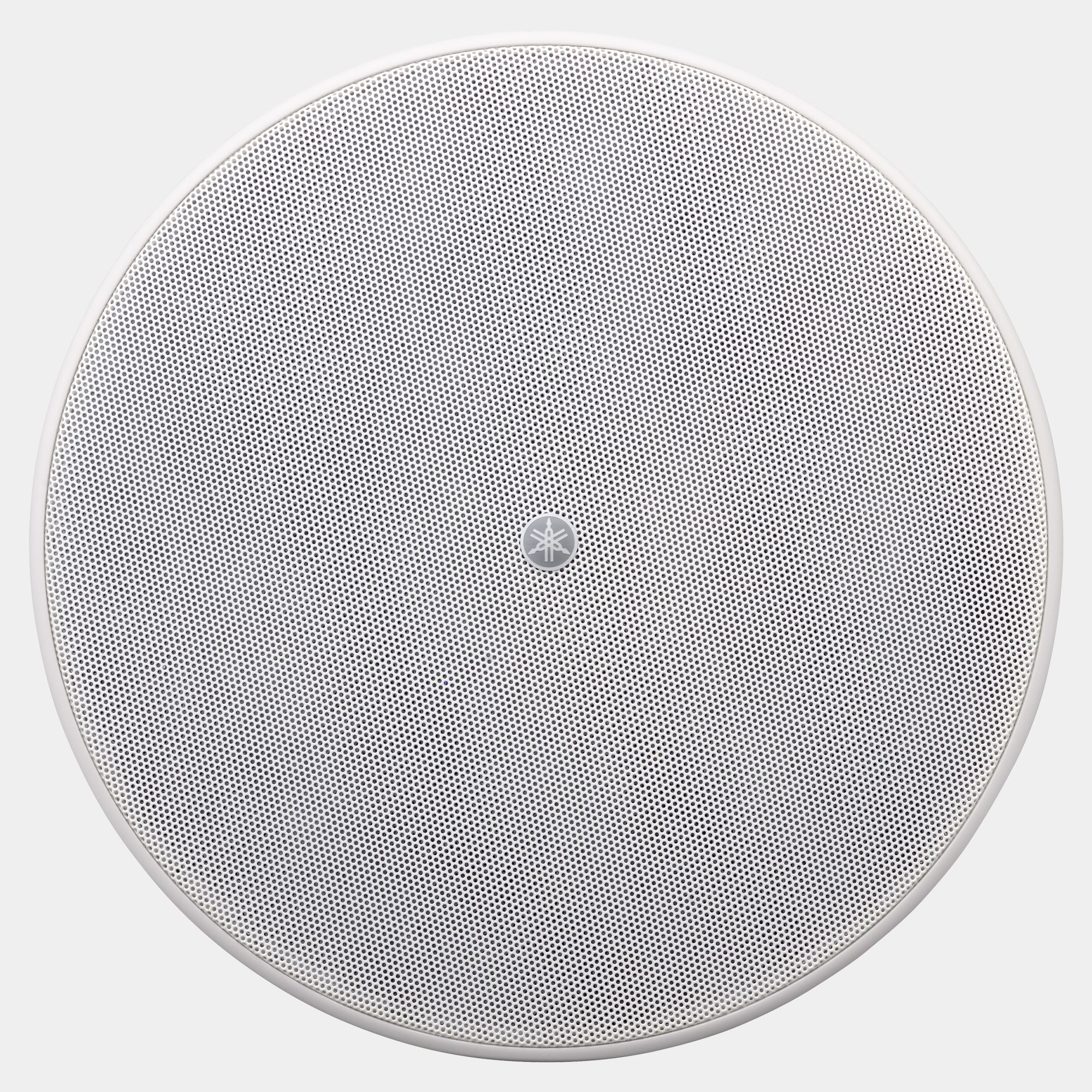

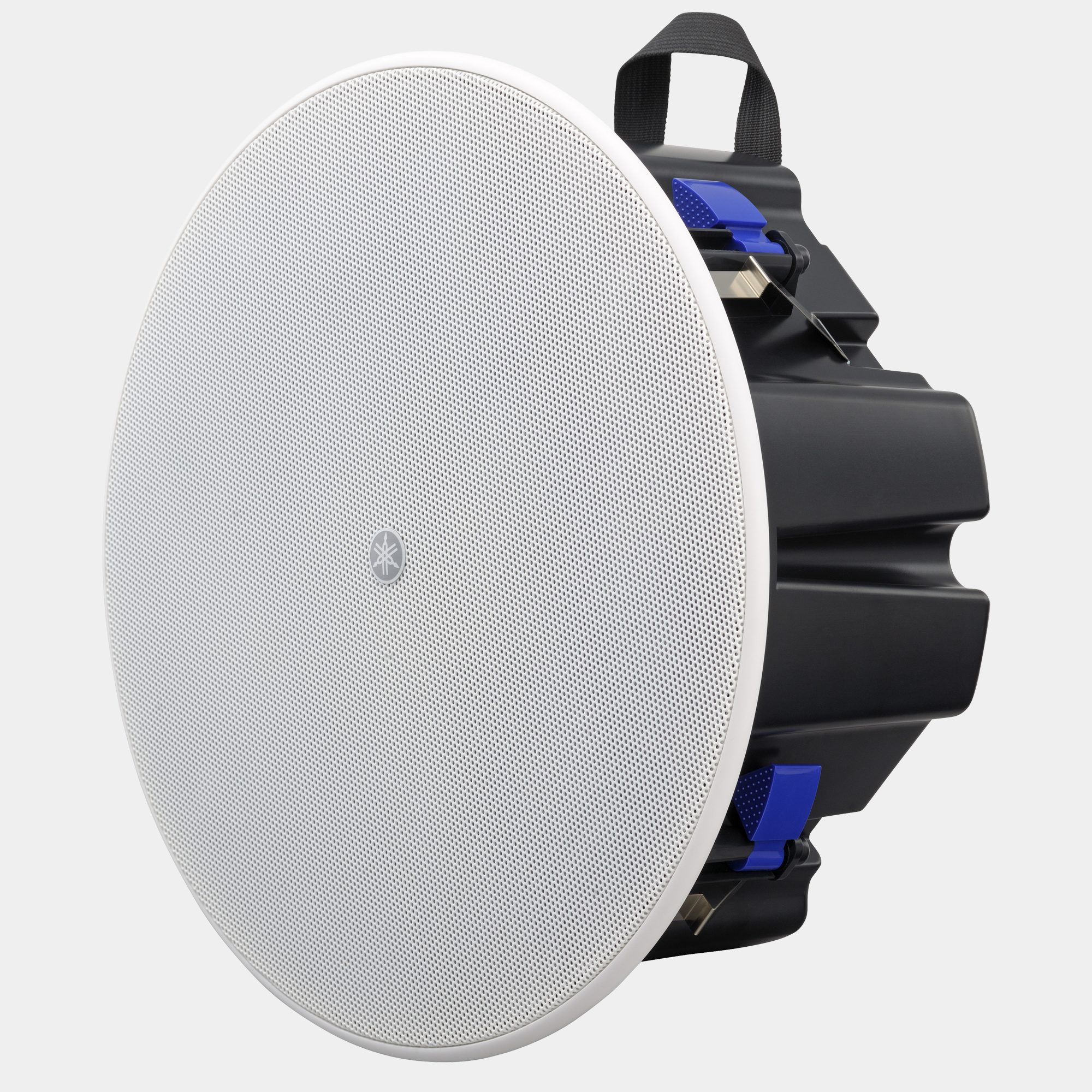

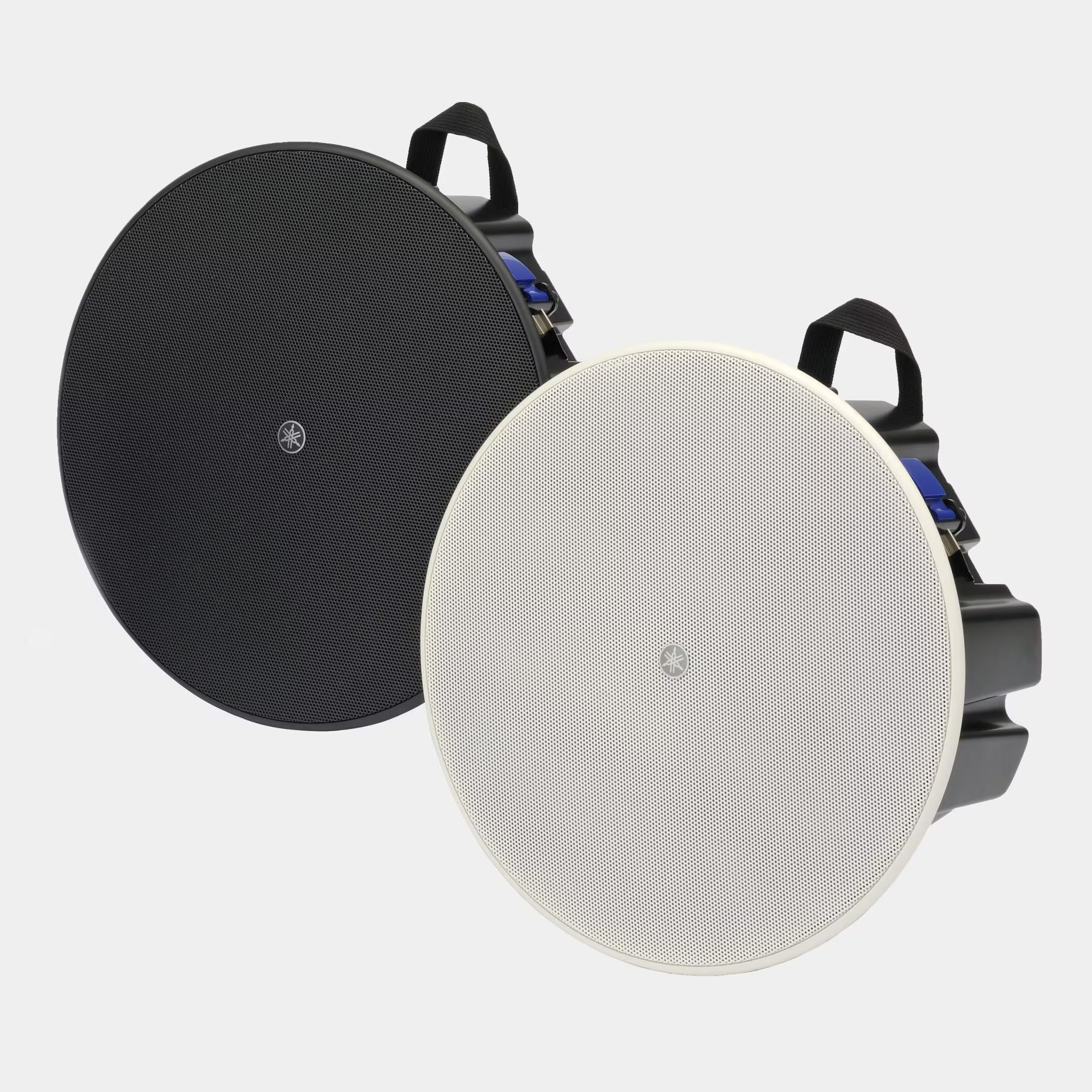

• Black and white versions available
• 1kg (6.8lbs), Ø324 x D143 mm (Ø12-13/16″ x D5-11/16″)

SYSTEMS

System Examples

Cover large spaces with fewer units

The VXC Series “F models” employ small-diameter full-range speaker units that offer broad coverage, allowing large areas to be covered by a relatively small number of units. A shallow back box contributes to a low-profile design that installs easily in limited ceiling spaces. Combine VXC series F models with a compact mixer amplifier that can handle multiple line and microphone inputs such as the MA2030a, for example, and it becomes possible to create simple, flexible sound systems that deliver impressive sonic performance.

Connect many speakers to a single feed in high-impedance mode

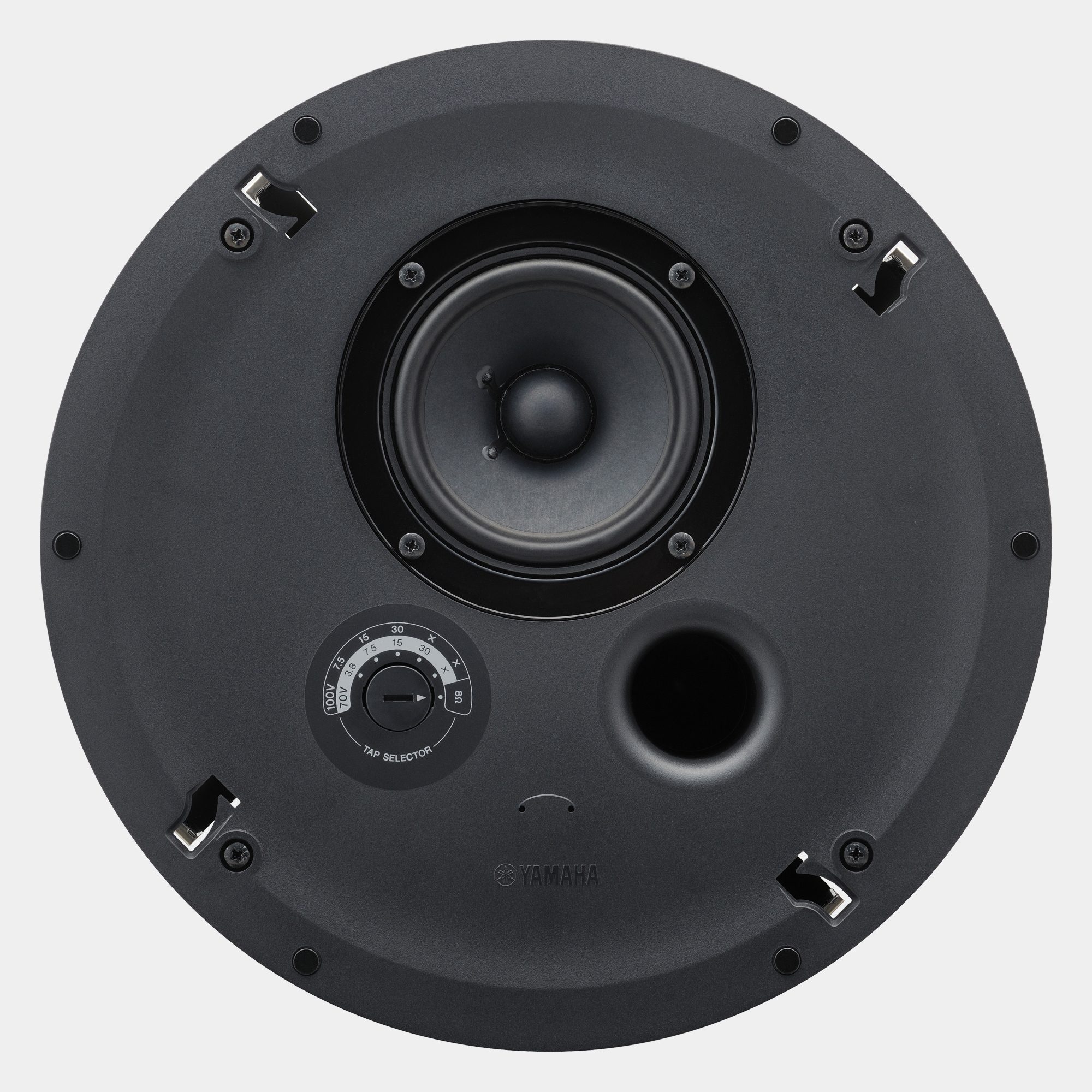

VXC series speakers can be easily switched to high-impedance operation via a tap on the baffle, allowing a large number of speakers to be connected to a single high-impedance amplifier output. Since output power can be adjusted in four stages when connected to a 70V feed, or in three stages when connected to a 100V feed, output level can be easily altered after installation. With VXC series speakers and a mixer amplifier like the MA2030a, it is possible to create a streamlined, high-performance system that allows microphone use while BGM is being played, for example. Add a power amplifier such as the PA2030a for zoning capability.

FEATURES

Delivers the Highest Quality Background Music

Yamaha’s deep understanding of music comes together with cutting edge technology in newly designed speaker units and enclosures, resulting in refined, natural music reproduction at any volume level without the midrange distortion that often plagues speakers of this type. The VXC-F’s speaker unit size and back box volume have also been painstakingly matched to achieve well-balanced reproduction from low to high frequencies even at low output levels.

Recommended Applications

Restaurants, cafe, bar, retail stores, spa, museum, hotel lobby, ball room, etc.

Smart Design for Safer, Faster Installation

The VXC-F ceiling speakers feature low profile back boxes, reduced weight, and mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connection, the need for extra stock is minimized and systems can be designed to ideally meet the requirements of any application.

• Carrying Ban
• Anti Drop Tab
• Hi-Z or Lo-Z
• Low Profile
• Lightweight
• Portable
• Secure
• Fast
• Streamlined
• Paintable
